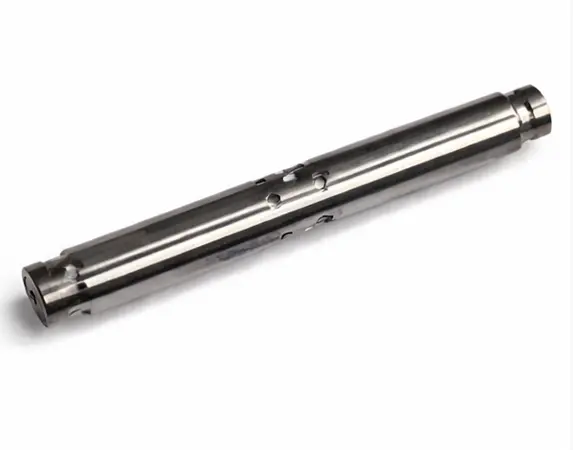

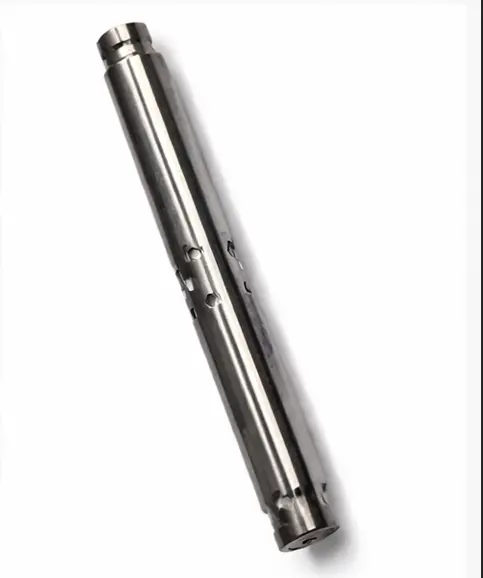

DIAPHRAGM SHAFT -
Product Description:
Diaphragm Shaft (Part No. 25-060) is a central mechanical component used in Blagdon AODD pumps. It acts as the primary linkage that connects the two diaphragms, converting air pressure into the reciprocating motion required for pumping.
About the Product:
The 25-060 shaft is a precision-engineered rod that passes through the pump's center block. It is secured to the diaphragms using inner and outer plates. As the air valve alternates pressure between chambers, this shaft pulls and pushes the diaphragms in a synchronized "suction and discharge" cycle.
Make: BLAGDON
Specifications:
Size: 1-inch (25mm) nominal port size
Operating Pressure: Ranges up to 125 psi (8.6 bar).
Temperatures: Ranges from 32°F to 212°F (0°C to 100°C)
Product Weight: 0.5 Kg
Features:
1. Reciprocating Design
2. High Tensile Strength
3. Precision Threading
4. Corrosion Resistance
Terms & Conditions:
This is Non-Returnable product
