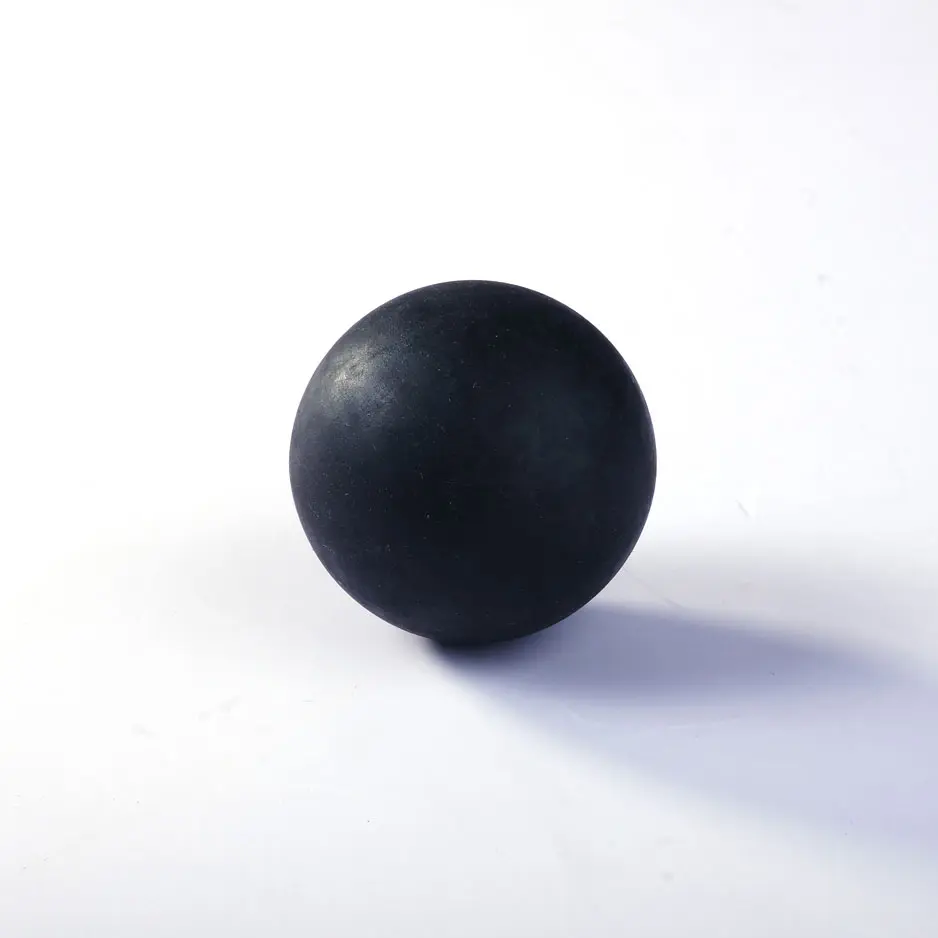

VALVE BALL NEO - 1" (1A-079)
Product Description:
VALVE BALL NEO - 1" (1A-079) is a replacement component for Blagdon B25 series (1-inch) air-operated double diaphragm (AODD) pumps, made from Neoprene (Chloroprene rubber).
VALVE BALL NEO - 1" (1A-079) is a replacement component for Blagdon B25 series (1-inch) air-operated double diaphragm (AODD) pumps, made from Neoprene (Chloroprene rubber).
About the Product:
In an AODD pump, four of these balls act as check valves to control the direction of fluid flow. They create a seal against the valve seats during the discharge stroke and lift during the suction stroke, ensuring efficient and unidirectional transfer of the pumped media.
Make: BLAGDON
Specifications:
Material: Neoprene (CR)
Size: 1 inch
Temperature Range: -20°C to +100°C (-4°F to 212°F)
Max Pressure: 8.6 bar (125 psi).
Product Weight: 100gm
Features:
1. Balanced Chemical Resistance
2. Good Abrasion Resistance
3. Weathering/Ozone Resistance
4. Reliable Sealing
Terms & Conditions:
This product is Non-Returnable.
