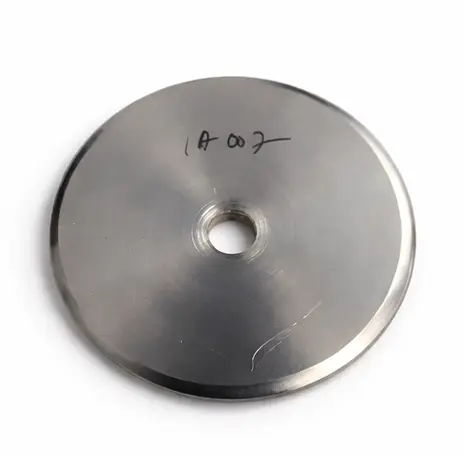

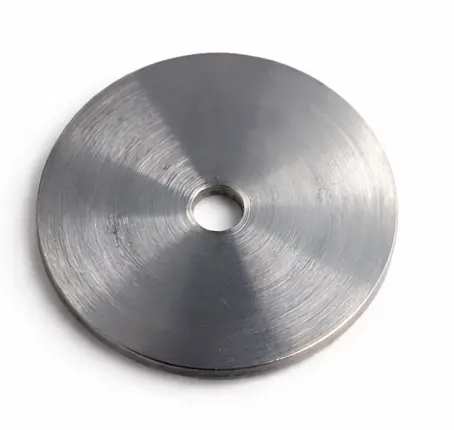

DIAPHRAGM BACKPLATE - (1A-007)
Product Description:
Diaphragm Backplate (Part No. 1A-007) is a critical structural component used in Blagdon AODD pumps. It serves as a rigid support for the diaphragm, ensuring even pressure distribution and preventing damage during the pump's reciprocating cycles.
About the Product:
In an AODD pump, the backplate is secured to the diaphragm shaft and sits behind the flexible diaphragm. Its primary role is to provide a solid surface for the air pressure to act against, forcing the diaphragm forward to discharge liquid without causing the material to deform or tear.
Make: BLAGDON
Specifications:
Size: 1-inch models
Operating Pressure: Ranges up to 125 psi (8.6 bar).
Temperatures: Ranges from 32°F to 212°F (0°C to 100°C)
Product Weight: 0.4 Kg
Features:
1. Diaphragm Protection
2. Precision Machining
3. Structural Integrity
Terms & Conditions:
This is Non-Returnable product
